5 Operational Rules for Your Glass Edge Shaped Machine

Up to 70% of tempered glass failures originate from micro-fractures smaller than 50 microns along the processed edge. In high-precision architectural, automotive, and industrial glass sectors, edge quality is not merely an aesthetic choice. It is a structural requirement.

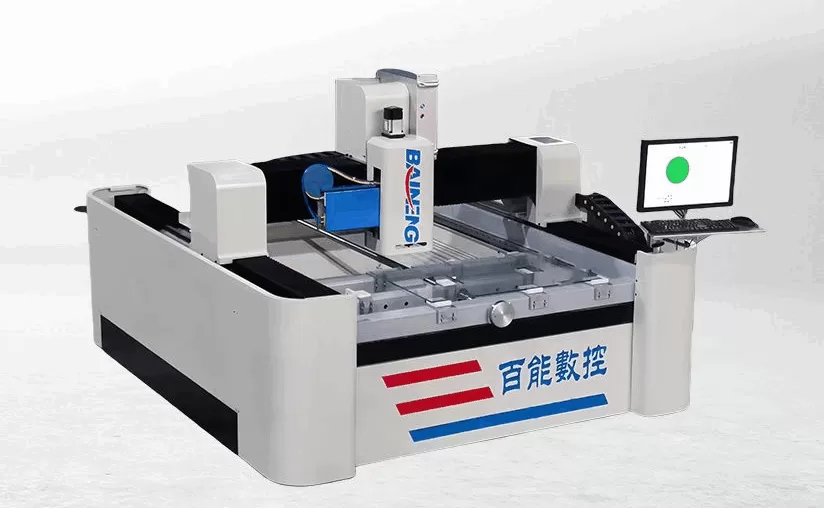

When processing complex shapes, the mechanical demands on your equipment increase significantly. Standard straight-line double-edgers cannot handle irregular curves, notches, or inner cutouts. This is where a dedicated CNC glass edge shaped machine becomes indispensable.

Operating these complex systems requires a deep understanding of material sciences, spindle dynamics, and tooling geometry. Achieving repeatable, high-yield production demands systematic control over the entire grinding and polishing lifecycle.

In this analysis, we will explore the variables that dictate the performance of your glass edge shaped machine. We will examine mechanical stability, tooling interfaces, and the underlying physics of glass removal to help your operators minimize scrap rates and improve edge quality.

The Mechanics of Vibration in Glass Edge Shaping

A primary challenge in glass edge processing is controlling high-frequency vibration. Glass is highly brittle and possesses low fracture toughness. Any uncontrolled oscillation from the spindle assembly transfers directly to the workpiece, resulting in micro-chipping along the edge.

The spindle of a glass edge shaped machine operates under wet, abrasive conditions, often at speeds ranging from 6,000 to 12,000 RPM. At these velocities, a spindle runout of even 0.015 mm can increase the crack propagation rate at the glass boundary. Dynamic balance is crucial.

Modern CNC systems mitigate this by utilizing heavy, rigid cast-iron machine beds. These structures absorb harmonic frequencies generated during high-speed grinding. Selecting equipment with robust casting profiles is vital for long-term stability.

Engineers at BAINENG CNC design structural rigidity directly into the machine frame to minimize structural resonance. This stability ensures that when the diamond tool contacts the glass surface, the energy is directed entirely into controlled material removal rather than random vibration.

The Physics of the Grind Interface: Coolant and Grit

Material removal in glass grinding is a balance between brittle fracture and ductile flow. Grinding occurs when diamond particles embedded in a metal bond scratch the glass surface. This action creates a series of intersecting micro-cracks that release small glass chips.

If the local temperature at the grind interface exceeds the glass transition temperature, the glass becomes plastic. While this might sound beneficial, rapid localized heating followed by instant cooling from the coolant fluid induces severe thermal stress, leading to spontaneous micro-fractures.

To prevent this thermal shock, coolant delivery must be highly targeted. The coolant must be directed exactly at the point of contact between the diamond wheel and the glass edge. High-volume, low-pressure floods are less effective than targeted high-velocity nozzles.

Additionally, the choice of coolant chemistry matters. Using pure water often leads to rapid tool loading, where glass fine powder clogs the diamond matrix. Synthetic coolant additives improve lubrication, keep the wheel clean, and ensure consistent heat dissipation across the profile.

The Over-Polishing Trap: A Counter-Intuitive Reality

A common misconception in the glass processing industry is that a highly polished, mirror-like edge is always structurally stronger than a satin or semi-polished edge. Operators often run slow feed rates with high polishing wheel pressures to achieve a glossy finish.

However, excessive polishing can hide serious structural defects. Polishing wheels, which typically use cerium oxide or polyurethane formulations, do not remove deep sub-surface damage (SSD) caused by aggressive rough grinding. Instead, they flow or "smear" the top layer of silica over these microscopic cracks.

This phenomenon, known as the "Over-Polishing Trap," conceals structural flaws that remain active underneath a polished surface. When the glass undergoes thermal tempering or mechanical loading, these hidden micro-cracks can expand, leading to catastrophic failure.

The solution is not to polish longer, but to grind better. The roughing and semi-finishing stages must systematically remove the damage layer left by the preceding step. A proper grinding sequence ensures that the polishing wheel only needs to remove a minimal superficial layer to achieve the desired finish.

The Thermal-Mechanical Equilibrium Triad (TMET)

To optimize the performance of a glass edge shaped machine, we utilize a framework called the Thermal-Mechanical Equilibrium Triad (TMET). This framework balances three critical variables to ensure stable, high-efficiency production without compromising structural integrity.

The three components of the TMET framework are:

• Mechanical Feed Rate (MFR): The linear speed at which the tool moves along the glass path, determining the mechanical load per diamond grit.

• Thermal Dissipation Rate (TDR): The volume, pressure, and alignment of the coolant fluid designed to maintain a stable interface temperature.

• Wheel Grit Exposure (WGE): The active state of the diamond wheel matrix, which must self-sharpen continuously to prevent friction build-up.

If any of these three elements is out of balance, the process fails. For instance, if you increase the Mechanical Feed Rate without increasing the Thermal Dissipation Rate, the interface temperature rises, leading to edge burning. Conversely, if Wheel Grit Exposure drops because the wheel is glazed, friction increases, requiring higher spindle torque and causing micro-chipping.

By monitoring spindle load indicators on your CNC controller, operators can maintain this equilibrium. A sudden spike in spindle current usually indicates that the wheel has glazed (low WGE) or that the coolant flow has shifted (low TDR).

Calibration and Maintenance Checklist

Maintaining high yields on a glass edge shaped machine requires consistent calibration. Below is a practical checklist designed for production managers and machine operators to run at the start of each production shift.

Frequently Asked Questions in CNC Glass Shaping

Why does my shaped glass crack during tempering when the edge looks visually perfect?

This issue is typically caused by deep sub-surface damage (SSD) that was not removed during the grinding phase. Even if the polishing wheel creates a shiny, reflective surface, micro-cracks remain beneath the polished layer. Under the intense heat and rapid cooling of the tempering furnace, these cracks expand rapidly, causing the glass to break. To resolve this, increase the material removal depth of your semi-finishing grinding wheels to ensure they fully clear the damage left by the roughing wheels.

How often should I dress the diamond wheels on my glass edge shaped machine?

The dressing frequency depends on the glass thickness, feed rate, and the hardness of the bond matrix. Generally, wheels should be dressed every 500 to 800 linear meters of processed glass. If you observe a rise in spindle load (visible on your CNC monitor) or notice small chips along the glass edge, the wheel is likely glazed and requires immediate dressing to expose new, sharp diamond particles.

Can I use the same feed rate for processing internal cutouts as I do for external edges?

No, internal cutouts and tight radiuses require a reduced feed rate. When a glass edge shaped machine processes small internal curves, the tool contact area increases significantly compared to flat or external surfaces. This increased contact area raises friction and heat while restricting coolant access. We recommend reducing the feed rate by 30% to 50% when navigating internal radiuses to prevent edge burning and maintain tool life.

Conclusion and Next Steps

Optimizing your glass edge shaped machine requires a balance of mechanical precision, proper tooling, and thermal control. By understanding the dynamics of the grinding interface and avoiding common mistakes like the over-polishing trap, your facility can achieve reliable, high-quality edges with minimal scrap.

Every step in your glass processing line contributes to the final yield. Ensuring your equipment is calibrated and your operators are trained in the TMET framework is a practical way to maintain competitive production standards.

If you are looking to upgrade your glass shaping capabilities or optimize your current CNC setup, BAINENG CNC offers a range of high-rigidity CNC glass engraving and edge-shaping equipment designed for modern industrial environments. Contact our engineering team today to discuss your specific production requirements.
