How Does Rotary Axis Configuration Impact Glass Bottle Engraving Precision?

Glass packaging represents a significant segment of the global container market, particularly in the beverage, cosmetics, and pharmaceutical sectors. While labeling and screen printing provide surface-level branding, permanent tactile markings offer a high-value aesthetic that resists environmental wear. The mechanical execution of glass bottle engraving requires a comprehensive understanding of brittle material physics. Glass behaves as an amorphous solid with high compressive strength but exceptionally low tensile strength. Introducing mechanical force to its surface without causing structural failure demands highly controlled parameters. Equipment manufactured by BAINENG CNC addresses these mechanical realities through precise spindle dynamics and multi-axis coordination. B2B manufacturers must evaluate several mechanical factors to maintain high throughput and minimize scrap rates during production.

The Physics of Glass Machining and Structural Integrity

When a cutting tool contacts glass, the material does not shear in the same manner as metals or ductile polymers. Instead, it undergoes micro-fracturing. The mechanical process relies on controlled crack propagation to remove material. As the diamond tool rotates against the surface, it creates a localized stress field. If this stress exceeds the material's fracture toughness, micro-cracks develop.

Industrial processes must balance two distinct regimes of glass removal: brittle mode and ductile mode. Brittle mode removal occurs when large forces create lateral and median cracks, leading to rapid material removal but a rough surface finish and potential structural damage. Ductile mode machining occurs at extremely small depths of cut and high spindle speeds, where plastic deformation takes place before fracture. Achieving a balance between these modes is necessary for high-quality results. To achieve repeatable glass bottle engraving results, spindle vibration must be kept to an absolute minimum.

Different glass compositions present distinct machining behaviors. Soda-lime glass, commonly used for commercial beverage containers, has lower thermal shock resistance and moderate hardness. Borosilicate glass, found in laboratory and premium cosmetic applications, has a lower coefficient of thermal expansion but higher mechanical resistance. The structural response of each material dictates the rotational speed, feed rate, and coolant requirements. Without precise mechanical control, localized thermal accumulation can cause instantaneous stress fractures, ruining the workpiece.

Mechanics of Rotary Systems for Glass Bottle Engraving

Engraving a flat sheet of glass involves three-axis linear movement (X, Y, and Z). Engraving a cylindrical or conical container introduces a fourth dimension: rotational movement, often designated as the A or C axis. The integration of this rotational component transforms standard linear coordinates into a cylindrical coordinate system.

The workholding mechanism must secure the glass container without applying excessive clamping pressure, which could crush the hollow structure. Simultaneously, it must prevent any axial slip or rotational backlash during machining. BAINENG CNC incorporates synchronized rotary axes that rotate the container in precise coordination with the linear movement of the spindle.

Maintaining concentricity is another major challenge. Glass bottles are rarely perfectly concentric; manufacturing tolerances in container production lead to slight variations in wall thickness and outer diameter. When a non-concentric bottle rotates, the distance between the engraving tool and the glass surface changes continuously. To resolve this, modern CNC setups utilize contact-based displacement sensors or non-contact optical probes to map the surface topology before machining. The control software then adjusts the Z-axis depth dynamically during the rotation, ensuring a uniform depth of cut across the entire perimeter.

Diamond Tooling Selection and Wear Mitigation

The choice of abrasive tool directly determines the quality of the engraving. Diamond tools, utilizing either synthetic or natural diamond grits, are standard due to the extreme hardness of glass. These tools are classified primarily by their bonding matrices:

• Sintered Diamond Tools: The diamond abrasive is distributed throughout a metal matrix. As the outer layer wears away, new diamond particles are exposed. This self-sharpening mechanism provides a consistent cutting action over a long operational lifespan.

• Electroplated Diamond Tools: A single layer of diamond grit is bonded to a steel shank via nickel electroplating. These tools offer high initial sharpness and complex geometries but exhibit a shorter lifespan once the single abrasive layer degrades.

Grit size selection governs the balance between material removal rate and surface roughness. Coarser grits (e.g., 80 to 120 mesh) are used for deep engraving and rapid material removal, though they require a subsequent polishing step to eliminate micro-cracks. Finer grits (e.g., 400 to 600 mesh) produce a frosted, smooth finish directly from the machining cycle, reducing post-processing requirements.

Coolant Delivery and Swarf Management

Mechanical friction during machining generates significant localized heat. Because glass has low thermal conductivity, this heat remains concentrated at the tool-workpiece interface. If the temperature gradient between the contact point and the surrounding glass becomes too steep, thermal shock will occur, leading to macroscopic cracking.

Continuous flood cooling is required to dissipate this heat. Water, often mixed with rust-inhibiting additives and synthetic lubricants, is the standard cooling medium. The coolant delivery system must direct high-pressure streams precisely at the contact point. Beyond heat dissipation, the coolant serves to flush away glass swarf (fine glass powder).

If glass swarf is allowed to accumulate in the cutting zone, it acts as a secondary abrasive, accelerating tool wear and scratching the surrounding glass surface. A closed-loop filtration system is necessary to separate these fine glass particles from the coolant before recirculating it. This prevents pump damage and maintains consistent coolant performance.

Addressing Mechanical Challenges in B2B Glass Bottle Engraving

For B2B operations, cycle time and yield rate are the primary performance indicators. Mechanical vibration is a major source of production defects. Any instability in the machine frame, spindle bearings, or rotary chuck will manifest as chatter marks on the glass surface. These micro-impacts initiate subsurface cracks that compromise the mechanical strength of the container.

To mitigate vibration, industrial engraving platforms use heavy cast-iron or mineral-casting frames that absorb high-frequency harmonics. The spindle must utilize high-precision ceramic bearings capable of operating at speeds up to 24,000 RPM or higher with minimal thermal expansion and axial runout of less than 0.002 mm.

Another operational challenge is tooling deflection. When using thin-diameter engraving bits for intricate text or fine lines, lateral forces can cause the tool to flex. This deflection leads to dimensional inaccuracies and increases the likelihood of tool breakage. Programmers must design tool paths that adjust the direction of cut—typically favoring climb milling over conventional milling—to minimize lateral force vector fluctuations. In high-throughput environments, automating the glass bottle engraving setup helps maintain a uniform surface finish across large batches.

Industrial Application Scenarios

The requirement for glass bottle engraving spans several commercial sectors, each with unique quality standards and aesthetic expectations.

• Spirits and Wine Packaging: Premium brands utilize deep relief engraving directly onto custom bottles to establish brand identity and deter counterfeiting. The process requires deep cuts with a high degree of surface clarity, necessitating multi-step toolpaths that transition from coarse material removal to fine polishing.

• Cosmetics and Perfumery: High-end cosmetic jars and perfume bottles require intricate, shallow engraving with frosted finishes. The focus here is on high spatial resolution and smooth edges, which demands precise control over spindle speed and feed rate to avoid chipping the delicate geometries.

• Industrial and Pharmaceutical Containers: In these sectors, engraving is used for serial numbers, batch codes, or tracking identifiers. The primary requirement is durability under sterilization processes (such as autoclaving) and resistance to chemical solvents, where traditional ink printing would fail.

Engineering Solutions by BAINENG CNC

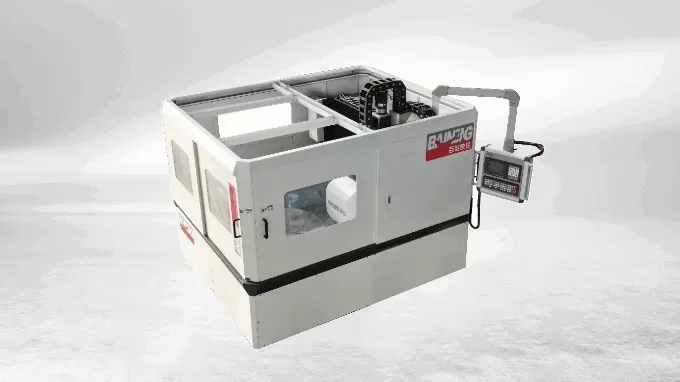

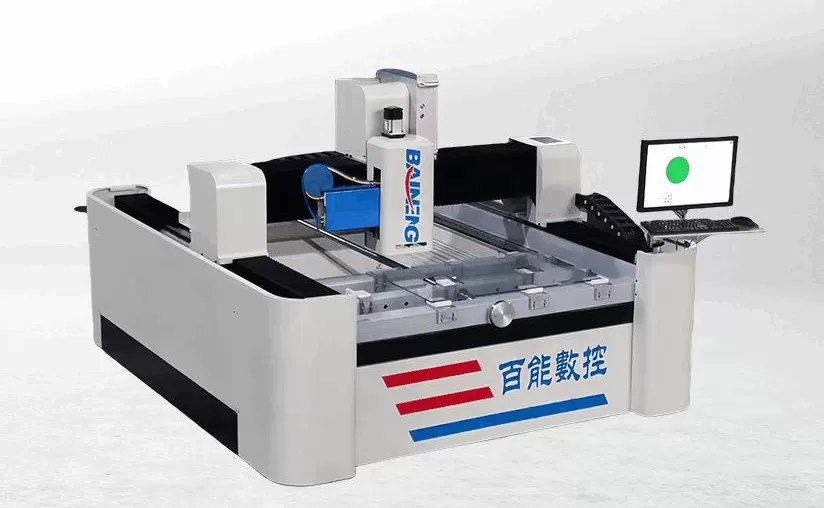

BAINENG CNC addresses these industrial demands through specialized machinery engineered for rigid, high-speed glass processing. By utilizing rigid structural designs and high-performance servo motors, the equipment maintains axis synchronization even during rapid direction changes.

The integration of high-frequency spindles with liquid cooling jackets allows for continuous operation without thermal drift, ensuring consistent engraving depth over long production runs. Furthermore, the rotary axes are engineered with high-torque, zero-backlash gearboxes to eliminate rotational deviations. The closed-loop control systems respond in real-time to surface mapping data, protecting delicate glass walls from excessive tool pressure.

These mechanical integrations allow B2B manufacturers to scale production, improve tool longevity, and lower the cost per engraved unit. By optimizing the interaction between the diamond tool and the glass substrate, these machines deliver reliable results across various container geometries.

Engineering Consultations and Custom Inquiries

Selecting the correct CNC configuration depends on your specific production volumes, glass compositions, and design complexities. For detailed mechanical specifications, tooling recommendations, or customized machinery configurations to suit your production floor, please submit an inquiry to our engineering team at BAINENG CNC.

Frequently Asked Questions

Q1: What spindle speeds are recommended for engraving glass bottles?

A1: For diamond abrasive tools, spindle speeds generally range between 18,000 and 24,000 RPM. The exact speed depends on the tool diameter, the grit size, and the feed rate. Higher speeds reduce the forces acting on the tool and help maintain a ductile mode of material removal, which minimizes micro-cracking.

Q2: How does coolant quality affect the lifetime of diamond engraving tools?

A2: Coolant quality is a primary factor in tool life. Unfiltered glass swarf in recirculated water acts as an abrasive, causing premature wear on both the tool shank and the diamond matrix. Utilizing a filtration system that removes particles down to 5 microns ensures optimal cooling and extends tool life significantly.

Q3: Can CNC machines engrave bottles with non-uniform wall thicknesses?

A3: Yes, but this requires surface mapping integration. Standard rotary setups assume a perfect cylinder. To prevent tool breakage or shallow cuts on irregular bottles, a surface-sensing probe or laser scanner must map the actual geometry of each bottle before engraving, allowing the CNC software to adjust the Z-axis height in real time.

Q4: What is the difference between electroplated and sintered diamond tools for glass bottle engraving?

A4: Electroplated tools have a single layer of diamond grit bonded to the surface, offering high precision and sharpness initially, but they wear out relatively quickly. Sintered tools have diamonds mixed throughout the metal matrix; as the tool wears, new diamonds are exposed, offering a much longer operational life for high-volume B2B production.

Q5: How do you prevent glass chipping at the edges of the engraved path?

A5: Chipping is prevented by controlling the feed rate and using a climb milling toolpath. Reducing the feed rate as the tool enters and exits the cut helps minimize lateral shock. Additionally, using finer grit diamond tools and maintaining constant high-pressure coolant delivery stabilizes the material structure during machining.
