Commercial maritime operations demand propulsion systems that offer high power density, reliability, and ease of maintenance. Over the past decade, the commercial sector has experienced a notable shift from traditional inboard diesel configurations to high-horsepower outboard propulsion. This shift is driven by the modularity of modern outboard units, which allows operators to minimize vessel downtime during servicing. Selecting a commercial Marine Outboard Enginer requires a thorough evaluation of structural dynamics, thermal management, and hydrodynamic efficiency to ensure sustained operation under harsh maritime conditions.
For commercial operators, fleet availability directly dictates profitability. Unlike inboard systems, which require complex shaft alignment and dry-docking for major engine overhauls, an outboard configuration allows for rapid unit replacement. A spare propulsion unit can be installed within hours, keeping the vessel in service while the primary unit undergoes maintenance. To fully realize these advantages, fleet procurers must analyze the underlying engineering parameters that govern durability and fuel efficiency in marine environments.
Material Integrity and Corrosion Control in Marine Propulsion
The operational environment of a Marine Outboard Enginer is highly corrosive, characterized by continuous exposure to saltwater, high humidity, and varying thermal cycles. Electrochemical degradation, specifically galvanic corrosion, presents a persistent threat to structural integrity. When dissimilar metals, such as stainless steel propeller shafts and aluminum gearcases, are in electrical contact within an electrolyte like seawater, galvanic cells form, leading to rapid deterioration of the less noble metal.
To combat this degradation, manufacturers utilize marine-grade aluminum alloys, such as copper-free aluminum-silicon-magnesium alloys (e.g., Al 5083 or Al 6061-T6). These alloys provide an optimal strength-to-weight ratio while maintaining high natural resistance to intergranular corrosion. To protect these base metals, multi-layered coating systems are applied, consisting of an conversion coating, an epoxy primer, and a highly durable topcoat. Additionally, sacrificial zinc or aluminum anodes are strategically positioned on the transom bracket and gearcase to provide continuous cathodic protection.
Precision manufacturing plays a fundamental role in maintaining these protective barriers. BAINENG CNC specializes in the high-precision CNC machining of structural marine components, ensuring that mating surfaces fit together with microscopic accuracy. By eliminating microscopic gaps and surface imperfections during the milling and turning stages, the accumulation of salt deposits is minimized. This precision prevents crevice corrosion, which typically occurs in hidden cavities where stagnant water becomes highly acidic.
Hydrodynamic Efficiency and Propulsion Dynamics of a Marine Outboard Enginer

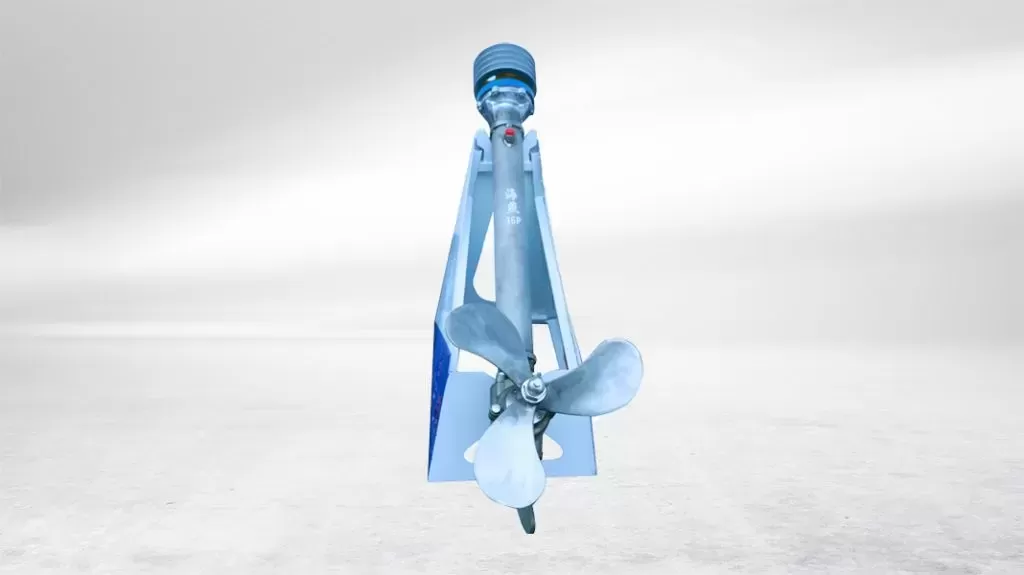

The primary metric of propulsion performance is the conversion of engine torque into directional thrust. This process is governed by the design of the lower gearcase and the propeller assembly. The lower housing must feature a streamlined hydrodynamic profile to minimize drag coefficient while enclosing the bevel gears and driveshaft. High drag in the lower unit increases fuel consumption and limits the maximum achievable speed of the vessel.
Cavitation is another major obstacle in underwater propulsion. It occurs when low pressure is generated on the suction side of the propeller blades, causing the water to vaporize and form vapor bubbles. When these bubbles collapse as they move into areas of higher pressure, they generate intense localized shockwaves that pit stainless steel surfaces and cause severe vibration. To prevent cavitation, propeller geometry must be carefully calculated, balancing blade area, rake angle, and pitch distribution.
Understanding Propeller Pitch and Slip
Propeller pitch is defined as the theoretical distance a propeller would move forward through a solid medium in one full revolution. In liquid environments, slip occurs, representing the difference between theoretical advance and actual advance. A well-designed Marine Outboard Enginer propeller operates within an acceptable slip range of 10% to 15% under load. Higher slip indicates improper propeller selection or severe blade degradation, leading to wasted thermal energy and accelerated wear on the engine components.
Gearcase Hydrodynamics and Reduction Ratios
The gearcase housing must balance two competing requirements: mechanical strength to house heavy-duty gears and a narrow profile to minimize drag. The gear reduction ratio determines the torque delivered to the propeller shaft. For heavy-duty commercial vessels, a higher reduction ratio (e.g., 2.0:1 or 2.5:1) is preferred, allowing the engine to turn a larger diameter propeller. This configuration provides the necessary thrust to move heavy payloads without overloading the power head.
Manufacturing Tolerances and Gearbox Reliability

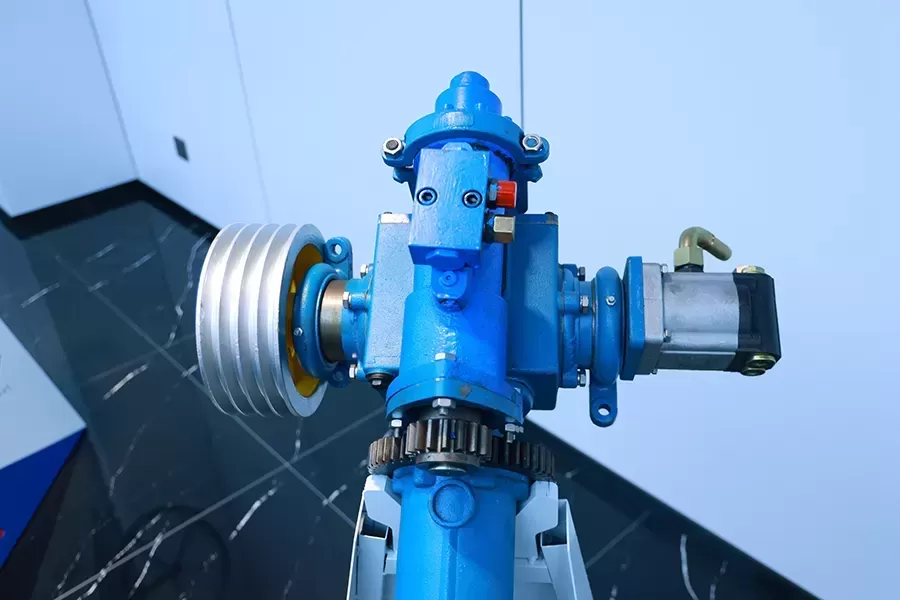

The internal drivetrain of a Marine Outboard Enginer operates under immense torsional stress. Power is transmitted from the vertical crankshaft through a vertical driveshaft down to the horizontal propeller shaft via a set of bevel gears. These gears must manage rapid changes in rotational direction and torque load, especially during sudden acceleration or when shifting between forward, neutral, and reverse gears.
Achieving reliable power transmission requires tight manufacturing tolerances. Gear backlash, which is the play between mating gear teeth, must be kept within precise micrometer limits. Excessive backlash causes impact loading on the teeth during shifting, leading to tooth fracture. Conversely, insufficient backlash leads to high friction, heat buildup, and premature gear failure. Through advanced CNC milling and grinding processes, BAINENG CNC produces shafts and gear housings that maintain exact tolerances under thermal expansion, preserving gear alignment during prolonged high-RPM operations.
Shaft Straightness: Propeller and drive shafts must maintain a runout tolerance of less than 0.02 mm to prevent high-frequency vibration that can destroy oil seals.
Spline Precision: The splines mating the driveshaft to the crankshaft must distribute torque evenly across all contact faces to prevent localized shear stress.
Bearing Alignment: Precision-bored bearing carriers ensure that tapered roller bearings support radial and axial thrust loads without shifting.
Thermal Management and Cooling Circuit Architecture
Commercial marine outboards operate under continuous high load, requiring a highly efficient thermal management system to maintain optimal combustion temperatures. Unlike automotive cooling systems that use closed-loop radiators, marine engines generally utilize open-loop raw water cooling systems, drawing seawater directly from the surrounding environment to cool the engine block.
The cooling circuit begins at the water inlets located on the lower gearcase. A rubber impeller water pump, driven by the vertical driveshaft, forces seawater upward through a copper or stainless steel water tube into the cooling passages of the cylinder block and cylinder head. Thermostats regulate the water flow, ensuring that the engine reaches its operating temperature quickly to minimize cylinder wall wear and optimize fuel atomization.
Silt, sand, and marine growth present constant challenges to open-loop cooling. If debris enters the cooling passages, it can form blockages, leading to localized overheating, cylinder head warping, and head gasket failure. To mitigate this, commercial outboards often incorporate dual-water inlets and integrated debris screens. Additionally, internal water passages are designed with smooth contours to prevent sediment from settling in low-velocity zones of the water jacket.
Integration of Electronic Control Systems in Commercial Fleets
Modern commercial operations demand precise control over fuel consumption and emissions. Electronic Fuel Injection (EFI) systems have largely replaced carburetors, utilizing an Engine Control Unit (ECU) to monitor parameters such as intake air temperature, manifold absolute pressure, engine speed, and coolant temperature. The ECU uses this data to adjust the duration of fuel injection and spark timing in real time.
For fleet managers, the integration of digital networks, such as NMEA 2000 or proprietary CAN bus systems, allows for real-time diagnostics and engine monitoring. Operators can track fuel burn rates, oil pressure, and alternator output directly from the helm display. This telemetry data enables predictive maintenance, allowing service crews to replace worn components before a component failure occurs at sea.
Furthermore, digital throttle and shift systems replace mechanical cables with electrical signals. This eliminates cable stretch, friction, and lag, providing smoother gear engagement and precise throttle adjustments. Smooth shifting is particularly important for commercial vessels that perform docking maneuvers or low-speed towing operations frequently, as it reduces shock loads on the gearcase internal components.
B2B Procurement and Specification Guidelines
When selecting a Marine Outboard Enginer for commercial fleets, procurement officers must look beyond simple horsepower ratings. Total cost of ownership involves analyzing fuel efficiency curves, maintenance intervals, and component replacement costs. The engine bracket must be compatible with the vessel's transom thickness and angle, and the shaft length must position the cavitation plate parallel to or slightly below the bottom of the hull keel to ensure clean water flow to the propeller.
Partnering with a precision manufacturing supplier is valuable for maintaining custom fleets. Component manufacturers like BAINENG CNC support B2B clients by producing custom transom brackets, high-strength mounting bolts, and specialized propeller shafts to meet unique operational needs. When sourcing replacement components or specialized hardware, specifying exact metallurgical standards and manufacturing tolerances ensures fleet uniformity and prolonged operational life.
For custom engineering requirements, component specifications, or manufacturing partnerships regarding marine propulsion hardware, please contact our engineering division to submit your technical drawings and request a comprehensive quotation.
Frequently Asked Questions
Q1: What are the main advantages of using a Marine Outboard Enginer over an inboard diesel system?
A1: Outboard engines provide superior modularity, allowing for rapid unit replacement to minimize vessel downtime. They also reduce the overall weight of the vessel, free up valuable deck space, and simplify maintenance by grouping the engine, drivetrain, and steering into a single external package.
Q2: How does cavitation damage a propeller, and how can it be prevented?
A2: Cavitation occurs when low pressure causes water to boil and form vapor cavities. When these cavities collapse against the blade surface, they generate high-pressure micro-jets that erode the metal. It can be prevented by refining blade geometry, choosing the correct pitch, and ensuring the lower gearcase maintains clean hydrodynamic flow.
Q3: Why is galvanic corrosion particularly severe on outboard engines, and how is it managed?
A3: Outboard engines contain different metals in close contact within conductive seawater, forming galvanic cells. This is managed by using high-purity aluminum alloys, applying multi-stage protective coatings, and installing sacrificial zinc or aluminum anodes that corrode instead of the structural steel or aluminum components.
Q4: What role does gear backlash play in the lifespan of an outboard gearbox?
A4: Gear backlash is the clearance between mating gear teeth. If the backlash is too large, shifting gears creates hard impacts that chip or break teeth. If it is too small, friction increases, leading to excessive heat and binding. Maintaining tight manufacturing tolerances during CNC production ensures proper backlash levels are sustained.
Q5: How do digital throttle systems improve commercial outboard operation?
A5: Digital throttle systems eliminate mechanical linkages, preventing issues associated with cable stretch and corrosion. They provide instantaneous throttle response, smooth shifting, and integrate with onboard electronic control units to prevent operators from executing shifts that could damage the gearcase.
