Laser Engraving Glass Guide Tips: Process Parameters and Practical Adjustments

Glass engraving with CO₂ lasers requires a refined understanding of thermal dynamics, beam interaction, and motion control. Unlike marking metals, glass will not absorb fiber laser wavelengths efficiently. The standard industrial approach employs sealed CO₂ laser sources emitting at 10.6 µm. This guide focuses on actionable tips to improve engraving consistency, avoid micro-fractures, and adapt to various glass compositions. The recommendations derive from field observations across container glass, architectural panels, and laboratory equipment production.

Selecting the Correct Laser Source for Glass

Not all laser wavelengths produce the same result on transparent materials. The absorption depth of 10.6 µm radiation in soda-lime glass is approximately 15–25 µm, making it suitable for controlled surface vaporization. Lower wavelengths (e.g., 9.3 µm) exhibit different absorption coefficients and may require power recalibration. Below is a comparison of common industrial laser types when applied to clear glass.

• CO₂ laser (9.3–10.6 µm): Direct absorption; frosted or deep engraving possible. Preferred for bottles, flat glass, and borosilicate tubes.

• Fiber laser (1.06 µm): Nearly 100% transmission through clear glass; only works with backside absorptive coatings or pre-applied marking sprays. Not recommended for direct glass marking.

• Diode-pumped solid state (DPSS) UV (355 nm): Higher photon energy enables cold ablation, but scanning speed is slower and equipment cost higher. Used for high-contrast markings on specialty glasses.

• Galvo versus gantry systems: Galvo scanners provide high-speed marking for small areas (≤300×300 mm). Gantry systems with flying optics suit large panels or curved surfaces where field distortion must be minimized.

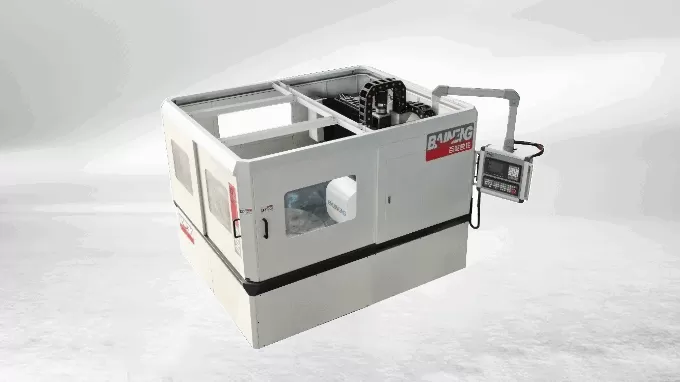

For most B2B operations processing thousands of glass items daily, a sealed CO₂ laser with water cooling delivers the best balance of reliability and operating expense. BAINENG CNC integrates such sources with active thermal management to maintain wavelength stability over extended production runs.

Parameter Optimization for Frosted and Deep Engraving

Glass engraving outcomes fall into two categories: surface frosting (light scattering effect) and cavity engraving (measurable depth). Each requires different parameter sets. The following tables and tips provide a starting point, but always test on representative material.

Surface Frosting Parameters (0.02–0.10 mm depth)

• Power: 25–45 W (for a 60W tube, 40–70% of maximum)

• Scan speed: 350–600 mm/s

• Pulse frequency: 12–20 kHz

• Line spacing (hatch distance): 0.08–0.12 mm

• Passes: 1 (single pass gives uniform matte finish)

Deep Engraving Parameters (0.15–0.50 mm depth)

• Power: 50–80 W (higher percentage for thicker removal)

• Scan speed: 150–300 mm/s (slower to increase energy density per area)

• Pulse frequency: 5–10 kHz (longer pulse duration)

• Line spacing: 0.05–0.08 mm (higher overlap)

• Passes: 3 to 10 passes with 0.05 mm layer stepping

• Cooling delay: 0.5 second between passes to let heat dissipate

One common mistake is increasing power too aggressively. Excessive power density (above 150 W/cm²) often causes thermal shock rather than clean vaporization. Instead, adjust frequency downward to increase peak pulse energy while maintaining average power in a safe range.

Handling Different Glass Types and Coatings

Float glass, borosilicate, lead crystal, and chemically strengthened glass each react distinctively. Recognizing the composition prevents rejects.

• Soda-lime float glass: Most common for windows and containers. Engraves predictably with standard parameters. Thermal conductivity is low, so avoid clustering multiple engravings in one small area without cooling intervals.

• Borosilicate (e.g., Pyrex): Lower coefficient of thermal expansion; withstands higher localized heat. Permits deeper engraving (up to 0.8 mm) with multi-pass strategies. Use slightly higher frequency (15 kHz) to reduce micro-crack risk.

• Lead crystal (24% PbO or more): Softer and more brittle. Requires reduced power (20–30W for frosting) and higher scan speeds to prevent pitting. Avoid deep engraving.

• Chemically strengthened glass (e.g., Gorilla Glass): High compressive surface stress. Limit engraving to <0.05 mm depth. Perform a pre-test on scrap pieces to verify no spontaneous breakage occurs 24 hours after marking.

• Coated glass (low-E, anti-reflective): The coating may absorb differently. Many AR coatings are dielectric stacks that can delaminate. A low-power cleaning pass (10–15W, high speed) removes coating before main engraving.

Workpiece Fixturing and Rotary Attachments

Positioning glass correctly influences engraving accuracy, especially for cylindrical items. Vibrations and uneven support lead to focus variations and inconsistent depth.

• Flat glass fixturing: Use soft rubber grips or low-tack adhesive film to prevent sliding. Avoid metal clamps that concentrate pressure. Vacuum tables work well for large sheets but ensure vacuum holes do not align with the engraving area (suction can deform thin glass during heating).

• Rotary axis alignment: For tumblers, bottles, or tubes, the rotation center must coincide with the optical axis. A four-jaw chuck with rubber inserts or a roller drive system with adjustable tailstock provides concentricity. Misalignment of more than 0.3 mm will cause focus drift across the circumference.

• Focus positioning on curved surfaces: Standard flat-field lenses have limited depth of field (±1 mm). For diameters exceeding 100 mm, use a dynamic focusing system (3D galvanometer) that adjusts the Z position during rotation. Alternatively, segment the engraving into overlapping zones and refocus manually.

BAINENG CNC offers a pre-configured rotary calibration routine that measures runout and adjusts the laser firing delay to maintain consistent spot diameter, particularly useful for wine bottles with non-uniform wall thickness.

Preventing and Diagnosing Common Glass Defects

Even with well-tuned parameters, operators encounter specific defects. The table below connects symptom, probable cause, and corrective tip.

Symptom: Halo effect (blurred white ring around engraved lines)

Cause: Excess heat conducted sideways, expanding the heat-affected zone.
Tip: Reduce power by 10–15% and increase scan speed proportionally. If halo persists, switch to a shorter pulse separation (increase frequency to 18–22 kHz) to reduce peak energy per spot.

Symptom: Tiny radial cracks emanating from engraving edges

Cause: Sudden thermal gradient or high peak power on fragile glass composition.
Tip: Implement two-stage engraving: first pass at 60% target power to create a shallow pre-etch, then second pass at full settings. The pre-etch relieves surface stress. Also consider preheating the glass to 70 °C using an IR panel.

Symptom: Non-uniform frosted appearance – darker in center, lighter at edges

Cause: Gaussian beam profile variation or incorrect field lens compensation.
Tip: For galvo systems, activate the “field correction” mapping in the controller. For gantry systems, ensure the beam expander is properly collimated. A beam profiler test can confirm whether the mode shape is TEM₀₀ (circular Gaussian) or distorted.

Symptom: Glass dust accumulation sticking to the surface

Cause: Insufficient air assist or extraction; debris re-deposits on hot glass.
Tip: Use a coaxial air nozzle with 0.3 MPa dry air aimed at the engraving point. After engraving, a gentle wipe with isopropyl alcohol and lint-free cloth removes residual dust. Do not use aggressive solvents on frosted surfaces as they may fill the micro-porosity and reduce contrast.

Optimizing Workflow and Batch Consistency

Industrial glass engraving lines benefit from systematic parameter management and condition monitoring. Simple documentation reduces variability across shifts.

• Parameter recipe banks: Store named profiles per glass type (e.g., “green_bottle_frost” or “boro_serial_30W”). Most controllers support USB or network transfer. BAINENG CNC software allows password-protected recipes to prevent unauthorized changes.

• Environmental factors: Ambient temperature above 30 °C reduces CO₂ laser efficiency. Monitor chiller water temperature (setpoint 22 °C ±2 °C) and clean condenser coils quarterly.

• Focus calibration frequency: Perform an autofocus check every 200 engraving cycles or at each shift start. Glass thickness variation within the same batch (common in recycled glass) requires dynamic focus tracking.

• Post-engraving annealing: For deep engraving (≥0.3 mm) on thick glass (≥5 mm), a slow cooling cycle or placement on a heated plate at 60 °C for 10 minutes reduces residual stress. Skip this for shallow frosting.

Implementing a simple pass/fail criterion using a magnified visual inspection (10×) for edge chipping or micro-cracks can catch process drift early. Some high-volume lines use automated optical inspection (AOI) after the laser station.

Safety and Fume Management

Laser engraving of glass produces fine silica dust and, depending on any coatings, potentially hazardous vapors. Respiratory protection and dust extraction are mandatory for industrial environments.

• Extraction specifications: Minimum airflow 300 m³/h per 100W of laser power. HEPA H13 or H14 filters capture particles down to 0.3 µm. Carbon pre-filters adsorb any organic residues if the glass has stickers or ink.

• Laser safety enclosure: Wavelength-specific protective viewing windows (OD 6+ at 10.6 µm). Interlock switches that cut laser emission when the door opens.

• Operator PPE: Safety glasses rated for CO₂ laser (polycarbonate with specific coating). Nitrile gloves when handling glass to avoid contamination that can cause uneven heating.

Frequently Asked Questions (FAQ)

Q1: Why do my engraved glass items sometimes crack hours after processing?

A1: Delayed cracking indicates residual thermal stress. This occurs when the heat-affected zone exceeds the glass’s ability to equalize stress. To mitigate: reduce average power, increase passes with lower power per pass, and allow longer inter-pass cooling (0.5–1 second). For soda-lime glass, never engrave deeper than 0.2 mm without post-heating. Also verify that the glass was not previously tempered (tempered pieces are highly sensitive).

Q2: Can I engrave through painted glass or remove a coating layer first?

A2: Yes. Many industrial applications involve engraving glass through a paint layer (e.g., back-painted glass for appliances). Use a two-step method: first pass at high speed and moderate power (30W, 600 mm/s) to ablate the paint without damaging glass; second pass at standard glass parameters to frost the exposed glass. Test paint composition: some ceramic paints require higher power.

Q3: What is the recommended way to handle very thin glass (≤1.5 mm) without breakage?

A3: Thin glass transfers heat quickly but has low mechanical strength. Use a supportive backing such as a damp paper sheet or silicone mat to absorb vibrations. Reduce power to 15–20W, increase speed to 500 mm/s, and use single-pass frosting only. Avoid deep engraving. Additionally, choose a smaller spot size (1.5” focal lens) to confine energy.

Q4: How often should the laser lens be cleaned when engraving glass daily?

A4: In a typical 8‑hour shift with proper extraction and air assist, inspect the protective window every 40 operating hours. Glass dust accumulates slowly. Use a lens cleaning solution and lint-free swabs; never dry wipe. If you notice a gradual power drop (engravings becoming lighter with same settings), clean the lens and check the extraction filter saturation. Some operators schedule cleaning every Monday morning as a standard routine.

Q5: Does the engraving quality degrade when processing recycled glass with varying tin content?

A5: Recycled glass often contains higher levels of metal oxides (tin, lead, or iron from cullet). These can increase absorption at 10.6 µm, causing unexpectedly deep engraving or surface irregularities. The solution is to create a parameter profile for “recycled mix” with reduced power (by 10–15%) and run a short test pattern before each batch. BAINENG CNC controllers allow instant swapping of material profiles, helping operators adapt to incoming glass variations.
